Specifications

Fields of application
  • Steel mills
  • Rolled metal warehouses
  • Ports
  • Machine building and metal processing companies
  • Companies in the field of construction and building materials
Related devices
  • Cranes
  • Loaders
Nature of the cargo to be handled
  • Long goods transportation
  • Handling of pipes, slabs, bundled sheet metal packages or sheet metal single pieces
  • Removal of the sheets from the work benches of the plasma cutting machines
All specifications

A glance at the most important advantages

  • Increased productivity
    Increased productivity
  • Decreased maintenance and servicing time
    Decreased maintenance and servicing time
  • Easy installation, quick and uncomplicated adjustment
    Easy installation, quick and uncomplicated adjustment

DIMET is a market leader in the field of manufactoring high-quality lifting equipment and systems. The company has more than 20 years of experience gained in collaborative work with national factories at the forefront of this industry sector. During the project planning phase we consider and determine the future lifting beam and spreader designs, as well as voltage distribution, electromagnetic fields, temperature fluctuations, we also provide speed analysis. All equipment and systems we produce comply with the European quality standards and this production is characterized, among others, by the following features:

  • Provision of an optimal solution for the elimination of deflections and irregularities in the geometry of rolled metal products and workpieces based on the creation of multiple fastening points
  • Reduction of personnel costs by eliminating the necessity of employing an additional slinger to handle the work
  • Line safety improvement by minimizing the risk of load breakage due to the small contact area of the single magnets.
  • Storage capacities capable of being used more efficiently due to the elimination of interruptions in the process flows between billet and bar stacks.



DIMET special range of magnet lifting devices for handling pipes, slabs, bundles of sheet metal and other non-standard long products

Technical specification

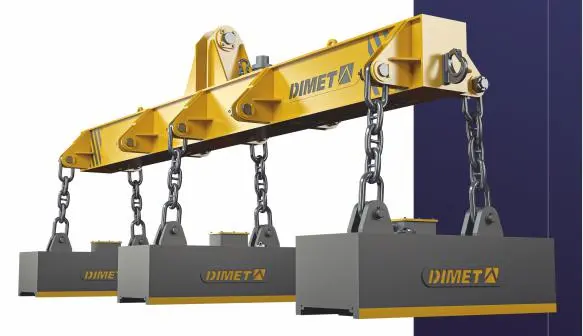

PG6-4000-3-5912

Beam Model Solution Load Type Load Weight, kg Thickness, mm Width, mm Length, mm Crane Capacity, t Suspension Type Additional Equipment Distance Between Suspension Points, mm Magnet Model
PG6-4000-3-5912 Magnetic lifting beam, Single plate Single plate 6000 4-16 900-1500 6000-12000 10 Pin Hooks, shackles EMGS 120-46-45/A-01-У1
PG7,2-5850-4 Magnetic lifting beam, Single plate Single plate 7200 5-40 1500-3500 3000-9000 5+5 Pin Hooks, shackles 2500 EMGS 110/34-38/А-У1
PG10-10000-5-5806 Magnetic lifting beam, Single plate Single plate 10000 4-10 1500-2500 6000-12000 10+10 Pin 3500 EMGS 110/34-38/А-У1
PG18-9700-6-2736 Magnetic lifting beam, Single plate Single plate 18000 8-60 1250-3200 12000 12.5+12.5 Pin Hooks 1810 EMGS 140-38-26/-У1
PG25-15000-6-3127 Add-on cantilever lifting beam, Single plate Single plate 25000 6-50 1500-4500 9000-18300 45 Pulley block Hooks, shackles 5000 EMGS 140-38-26/-У1
PG24,5-10000-5-5229 Magnetic lifting beam, Single plate Single plate 24500 10-36 3400-4400 11700-12200 25+25 Pin 9000 EMGS 140-38-26/-У1
PG30-21000-9-5229 Magnetic lifting beam, Single plate Single plate 30000 10-36 3400-4400 11700-18100 25+25 Pin 9000 EMGS 270-35-31/MТ-У1
Tap to view all characteristics
