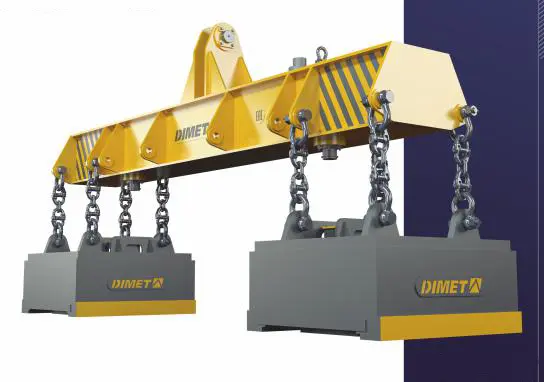

PG9-3000-2-5683

Specifications

Make order
All specifications⇣
Request price

Technical specification

Long loads — Plate bundles / rotating / telescopic

Beam Model Solution Load Type Load Weight, kg Thickness, mm Width, mm Length, mm Crane Capacity, t Suspension Type Additional Equipment Distance Between Suspension Points, mm Magnet Model
PG15-8500-4-4817 Magnetic lifting beam, Rotating, Telescopic — 15000 8-200 1500-3250 4600-12000 35 Pulley block Hooks, shackles 1600x875 EMGS 170-70-40/А-У1
PG15-5000-5 Magnetic lifting beam, Plate bundles — 15000 8-30 1500-3200 4000-12200 26 Pin Hooks, shackles 5000 EMGS 117-39/MТ-У1
PG9-3000-2-5683 Magnetic lifting beam, Plate bundles — 9000 2-12 1250-1500 2500-6000 20 Pin Hooks, shackles — EMGS 100-98-55/А-УІ
Tap to view all characteristics
