Specifications
Technical specification
Rolled sheet steel coils
| Grab Model | DIMET Solution | Load Type | Load Weight, kg | Inner Diameter, mm | Outer Diameter, mm | Height, mm | Lifting Capacity, t | Grab Weight, kg | Ambient Temperature, °C | Gripping Range, mm | Additional Parameters |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ZK -25-2979-02 | Tong grab / Coils | Rolled sheet steel coils | 25000 | 800 | 1300–2100 | — | 25 | 3250 | -40...+40 | 250...650 | Max coil temperature: 200°C |

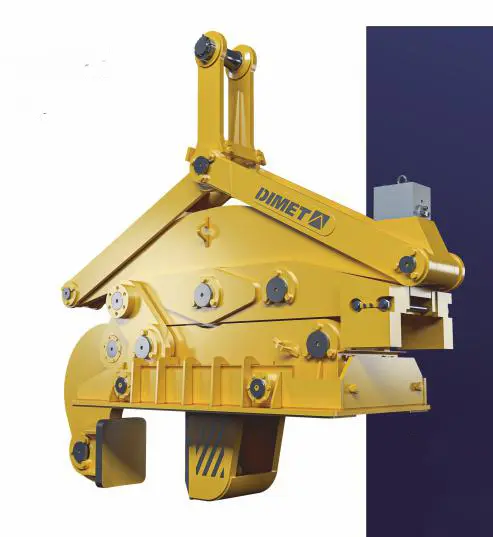

| ZK35-811 | Tong grab / Coils | Rolled sheet steel coils | 35000 | 600–850 | 1000–2000 | 460–1100 | 35 | 8900 | -20...+40 | 150...750 | — |
| ZK 35-2737 | Tong grab / Coils | Rolled sheet steel coils | 35000 | 600 | 2250 | 700 | 35 | 8900 | -20...+40 | 150...750 | — |
| ZK 35-1533-02 | Tong grab / Coils | Rolled sheet steel coils | 35000 | 820–890 | 1250–2300 | 700–1830 | 35 | 8900 | — | 150...750 | Max coil temperature: 730°C |
| ZK 45-5497 | Tong grab / Coils | Rolled sheet steel coils | 45000 | 600 | 1000–2200 | 1250–2000 | 45 | 13300 | 0...+200 | 150...750 | — |
| ZK 35-2749 | Tong grab / Coils | Rolled sheet steel coils | 35000 | 850 | 950–2200 | 1000–2350 | 35 | 13300 | 0...+200 | 150...750 | — |
| ZK45-6001 | Tong grab / Coils | Rolled sheet steel coils | 45000 | 600 | 800–2600 | 880–1880 | 45 | 13300 | 0...+200 | 150...750 | — |
Get product consultation
